OOAD Method#
- OOAD (Object-Oriented Analysis and Design)
- It is a method for analyzing information regarding the system context, capable of supporting the handling of large amounts of data that can be distributed to related departments, and with an object-oriented approach to analysis, design, user interface, and programming.
- Uses UML in the design of its information system.
Case Study of ERP Implementation#
- Below, the implementation of ERP using the OOAD Method for the Sales & Distribution System will be described.
- The UML Diagrams depicted are:
- Use Case Diagram
- Activity Diagram

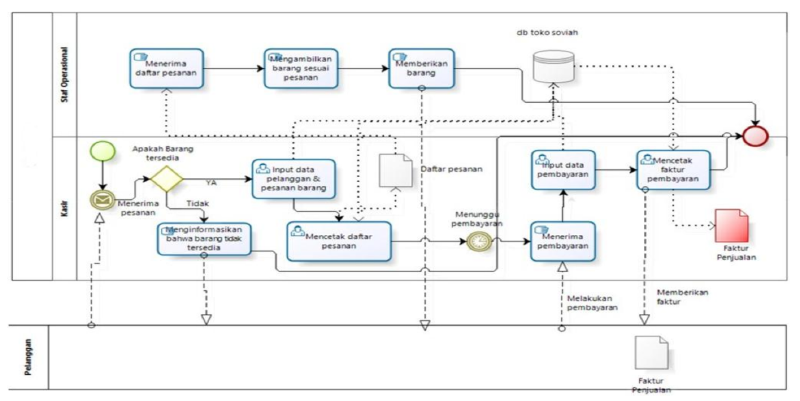

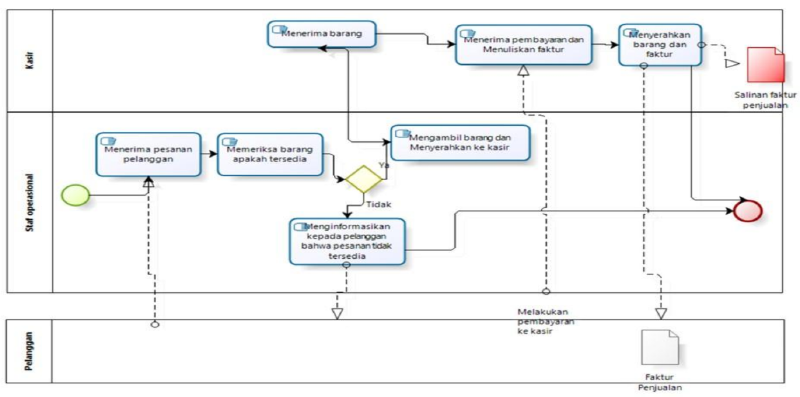

Example of the Current Sales System Business Process Before Odoo Implementation#

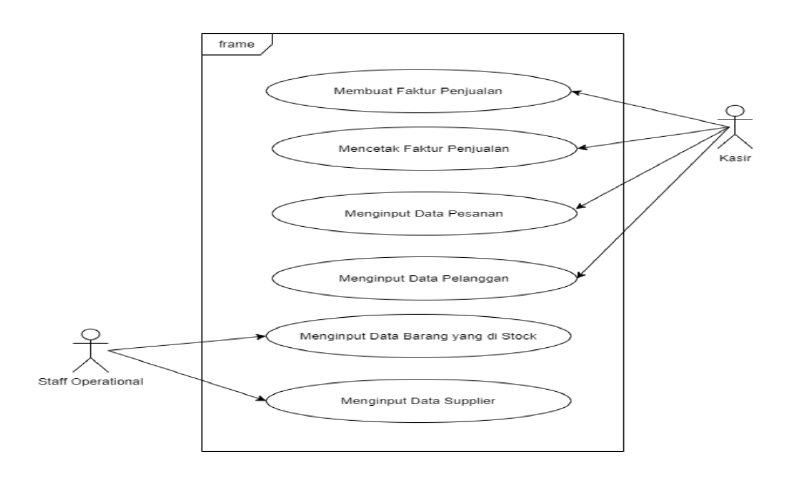

Example of Sales and Distribution Module Use Case#
