Branching structures in Python programming are:
ifBranching Structureif elseBranching Structureif elif elseBranching Structurenested ifBranching Structure
1. if Branching Structure#
The if branching structure is used for a single decision choice. If the condition is True, the statement is executed. If the condition is False, the statement is not executed.
General Form
if condition:
statementif flowchart:
Example if condition#
If the Exam Score >= 70, then print “Congratulations You Passed the Exam”. The Python program code is as follows:
# if Branching structure
Nilai = input('Enter Your Score: ')
if Nilai >= '70':
print('Congratulations You Passed the Exam')
# Output
75
Congratulations You Passed the Exam2. if else Branching Structure#
The if ... else branching will evaluate a condition. If it evaluates to True, statement1 is executed; if the condition evaluates to False, statement2 is executed.
General Form:
if condition:
statement1
else:
statement2
Determining Even or Odd Numbers#
Problem: Create an algorithm to determine whether a given number is even or odd.
Problem Identification:
Input: Integer
Output: “Odd” or “Even” number.
algorithm even_odd_number
Declaration
Bil: integer
Ket: string
Begin
Read (bil)
If bil mod 2 = 0 then
ket <- 'even'
Else
ket <- 'odd'
Write (ket)

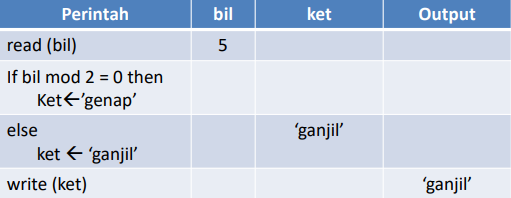

endInitially, a variable (bil) is inputted, for example, 5. Because the condition (bil mod 2 = 0) is false, the ket variable becomes the one after else, which is ‘odd’, so the write (ket) command outputs ‘odd’.

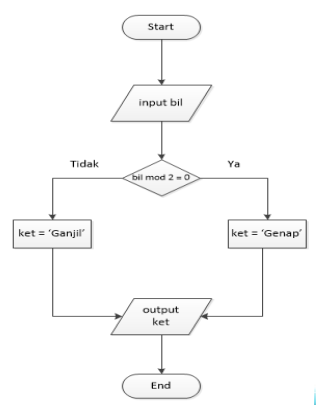

Even/Odd Number Flowchart#
Example if else Program to Determine Odd or Even Numbers#
# if ... else Branching structure
bilangan = int(input('Enter A Number: '))
if bilangan % 2 == 0:
print("Number {} is even.".format(bilangan))
else:
print("Number {} is odd.".format(bilangan))Running Result:
Enter A Number: 9
Number 9 is odd.
Enter A Number: 6
Number 6 is even.3. if elif else Branching Structure#
Used to test more than 2 conditions. If condition1 is true, statement1 is executed. If false, it proceeds to condition2. If condition2 is true, statement2 is executed, and if false, statement3 is executed.
General form:
if condition1:
statement1
elif condition2:
statement2
else:
statement3
Example if elif else Program#
# if ... elif ... else Branching Structure
Nilai = input('Enter Final Score: ')
if Nilai >= 80:
print('Grade = A')
elif Nilai >= 70:
print('Grade = B')
elif Nilai >= 60:
print('Grade = C')
elif Nilai >= 40:
print(Grade = D)
else:
printf(Grade = E)Running Result:
Enter Final Score: 70
Grade = B
>>>
Enter Final Score: 90
Grade = A
>>>
Enter Final Score: 65
Grade = C
>>>4. Nested if Branching Structure#

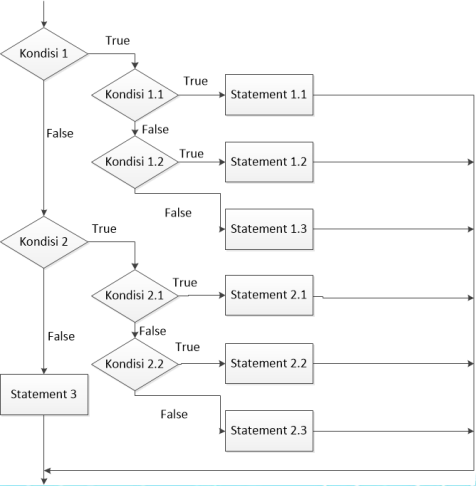

Nested if
A nested if condition is an if condition inside another if condition.
General form:
if condition1:
if condition 1.1:
statement 1.1
elif condition 1.2:
statement 1.2
else:
statement 1.3
elif condition2:
if condition 2.1:
statement 2.1
elif condition 2.2:
statement 2.2
else:
statement: 2.3
else:
statement3
Example Nested if Program#
# Nested If Branching Structure
# Shirt Brand Polo/Alisan/StYess
Merk = input('Shirt Brand P/A/S: ')
if Merk == 'P':
print('Brand Polo')
ukuran = input('Size L/M/S: ')
if ukuran == 'L':
print('Price = 300000')
elif ukuran == 'M':
print('Price = 225000')
else:
print('Price = 175000')
elif Merk == 'A':
print('Brand Alisan')
ukuran = input('Size L/M/S: ')
if ukuran == 'L':
print('Price = 275000')
elif ukuran == 'M':
print('Price = 200000')
else:
print('Price = 150000')
elif Merk == 'S':
print('Brand StYess')
ukuran = input('Size L/M/S: ')
if ukuran == 'L':
print('Price 250000')
elif ukuran == 'M':
print('Price = 175000')
else:
print('Price = 125000')
else:
print('Invalid Brand')Running Result:
Shirt Brand P/A/S: P
Brand Polo
Size L/M/S: L
Price = 300000
Shirt Brand P/A/S: A
Brand Alisan
Size L/M/S: S
Price = 150000
